A Combination You Cannot Beat

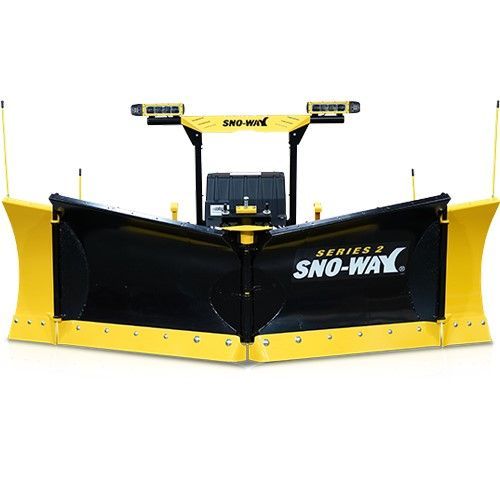

The Flared Wing 29RVHD Series 2 V-Plow with Hydraulic End Wings is built for commercial plow contractors that want to move more snow with greater efficiency. The combination of the flared V-Plow wings with the integrated hydraulic end wings provides the greatest snow-moving flexibility and capacity for any plow truck. The 29RVHD Series 2 is built for trucks ranging from ¾ ton to Class 5 work trucks.

The Flared Wing design showcases a 29-inch center and a 36.5-inch-inch outer height for greater snow-casting. Standard structural features include a direct linkage system delivering hydraulic-controlled lift and lower functionality, reactive Down-Pressure system providing over 250 lbs. of down force for a cleaner scrape, double jack stand for easy on/off with the Drive-In Mount and a Shock Killer blade design to dampen shock forces going into the frame of the truck.

The 29RVHD uses the integrated MaxADJUST™ Leveling System to clean and scrape snow more efficiently. This system uses a simple hex bolt to adjust the V-Wing moldboard tilt forward or back which keeps all edges parallel to the ground providing superior cleaning performance and impressive back dragging capabilities.

The hydraulic end wings are integrated into the blade design to provide maximum flexibility. Independent wings that can rotate 150 degrees allows the operator to move snow in the tightest areas and then open to full with of 114 inches while allowing for a safe and secure travel width of 102 inches.

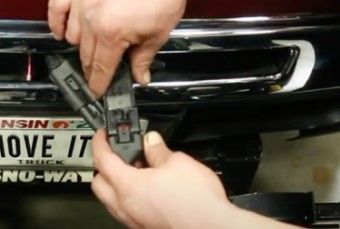

The ESS system is the standard wiring/lighting platform that provides efficient power and bright lights along with the ability to add optional lighting. This system allows a user with many vehicles to easily move this plow from truck to truck.

The Flared Wing 29RVHD Series 2 V-Plow with Hydraulic End Wings weighs 1075 lbs. and is protected by a triple coat process that includes zinc phosphate wash as an initial layer to prevent corrosion, then an automotive E-Coat primer which penetrates the metal to keep rust from ever starting and a finish coat featuring a military grade powder-coat.

Moves the Most Snow. Period.

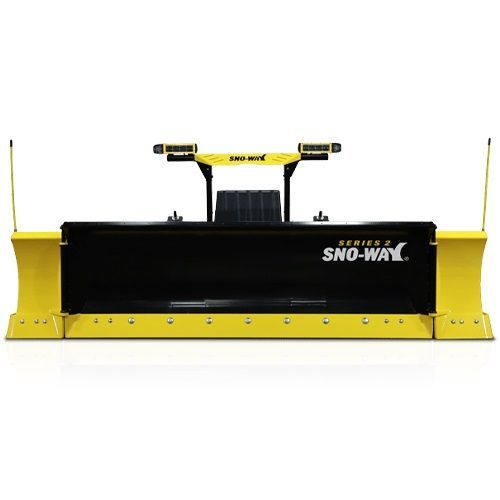

The Revolution™ HD Series 2 Snow Plow is designed to provide maximum snow moving flexibility and capacity for 3/4 or larger. This 10 foot wide, 29 inch tall plow is designed to move more snow.

The patented fully controllable, independently moveable 13-1/2? wide wings allow you to make your Snow Plow a full open plow to a box end plow in a matter of seconds. While other “expandable” plows have wings that move out and forward 20 degrees, the Revolution HD allows the operator to move the independent hydraulic wings to tackle any difficult situation.

When you combine the fully hydraulic Snow Plow independent wings with the ability to also angle the plow, the operator will fit through the tightest areas while still capturing up to 6.1 cubic yards of snow.

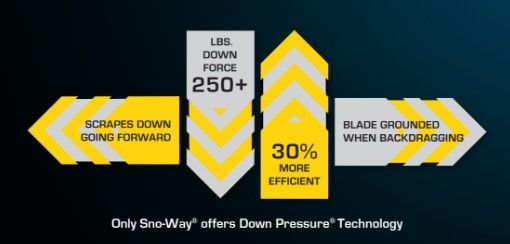

The Down Pressure hydraulic system delivers an additional 250 pounds of down-force on the cutting edge with the push of a button.

The Ultimate Snow Moving Machine

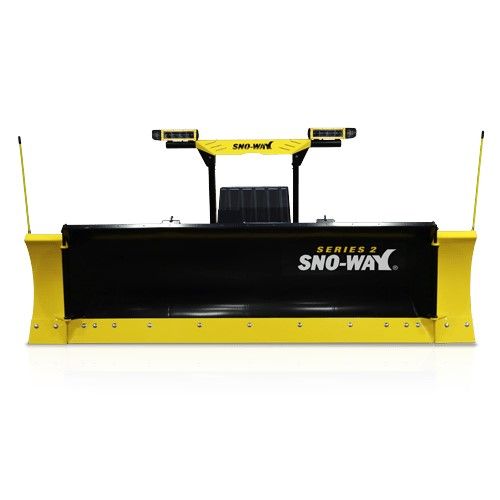

The 29R Series 2 snowplow is 8’10” wide and 29 inches tall plow and moves more snow than any plow in this class.

The “R” in the model identifier refers to the Revolution series of plows. These plows are designed with patented hydraulic end wings that can be controlled together or independently to move the snow where you want it at any time. Each wing can be moved from a straight out position into a 90 degree orientation to the main blade – effectively creating a box plow. This patented dual-wing plow design provides you the ability to move up to 4.8 cubic yards of snow which is double the closest competitor’s V plow or expandable plow!

Engage the Patented Down Pressure® Hydraulics System that increases snow moving capacity another 30% and you have the ultimate snow clearing machine.

Common Truck Applications: 3/4 Ton: F-250, Ram 2500, 2500 Sierra, 2500 Silverado 1 Ton: F-350, Ram 3500, 3500 Sierra, 3500 Silverado

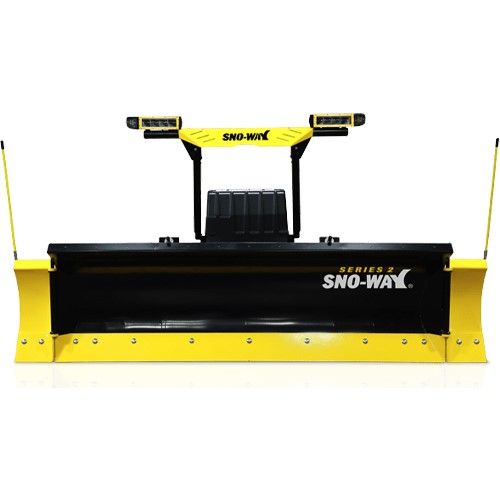

A Revolutionary Plow for half-ton trucks

The 26R Series 2 Snow Plow is a revolutionary plow for ½ ton trucks providing more snow moving capability and flexibility than any other plow in the industry.

The “R” in the model identifier refers to the Revolution series of plows including the 26R, 29R and Revolution HD models. These plows are designed with patented hydraulic end wings that that can be controlled together or independently to move the snow where you want it at any time. Each wing can be moved from a straight out position into a 90 degree orientation to the main blade – effectively creating a box plow. This patented dual-hinge plow design provides you the ability to move up to 3.6 cubic yards of snow which is double the closest competitor’s V plow or expandable plow!

Engage the Patented Down-Pressure® Hydraulics System that increases snow moving capacity another 30% and you have the ultimate snow clearing machine.

Common Truck Applications: 1/2 Ton: 1500 Avalanche, F-150, Ram 1500, 1500 Sierra, 1500 Silverado, 1500 Suburban, 1500 Yukon, Toyota Tundra

Best Cleaning Commercial V-Plow

Double acting wing cylinders are specifically designed to provide maximum force in the forward or back hydraulic position. These optimized cylinders keep the plow wings from being forced open in heavy snow and allow for superior vee-plow back dragging in tight quarters.

With the Down Pressure® Hydraulic System as standard equipment, this plow will clean better and cut 30% of your plowing time. The Down Pressure Hydraulics add over 250 pounds of down force on the cutting edge which is a first in the industry and scrapes clean forward and maximizes back dragging.

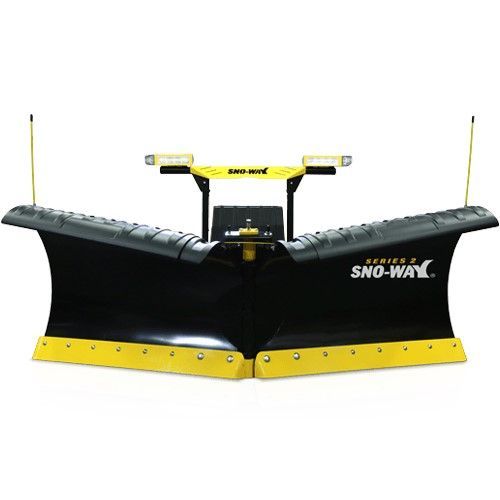

Sno-Way 29VHD V-Plow handles obstructions with ease utilizing a patented Shock Killer™ Trip Return System which reduces blade return shock to the truck and the driver.

Sno-Way pays attention to even the smallest details to be sure operators can maximize performance and efficiency. The tube steel tab-slot and lock construction ensures component fit and proper welding while the pre-drilled top rail allows the contractor to easily add the E-Z Fit Deflector in a few minutes.

Common Truck Applications: 3/4 Ton: F-250, Ram 2500, 2500 Sierra, 2500 Silverado 1 Ton: F-350, Ram 3500, 3500 Sierra, 3500 Silverado Class 4: F-450, Ram 4500, 4500 Sierra, 4500 Silverado Class 5: F-550, Ram 5500

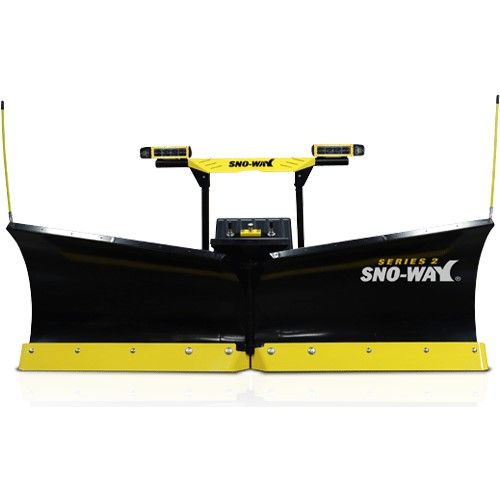

1/2 Ton Flared Wing V-Plow

To enhance cleaning, Sno-Way invented the patented MaxADJUST™ Leveling System – which is a single adjusting arm blade leveling system. This simply allows the operator to adjust the center hinge for perfect plowing alignment and eliminate a snow trail.

With the Down Pressure® Hydraulic System as standard equipment, this plow will clean better and cut 30% off of your plowing time.

The Sno-Way 26V Series 2 V-Plow handles obstructions with ease utilizing a patented Shock Killer™ Trip Return System which reduces blade return shock to the truck and the driver.

Common Truck Applications: 1/2 Ton: 1500 Avalanche, F-150, Ram 1500, 1500 Sierra, 1500 Silverado, 1500 Suburban, 1500 Yukon

Flared Wing V Plow for Downsized Truck

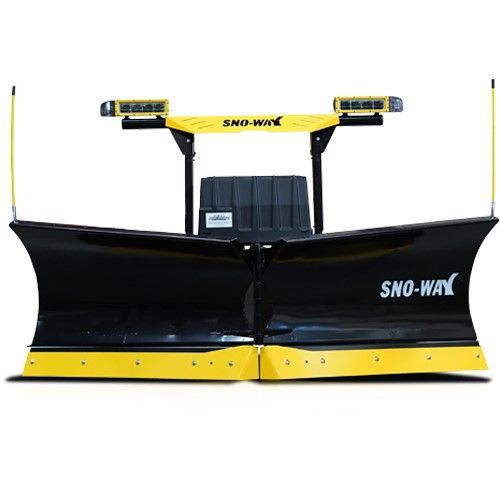

The Flared Wing 22V Series 2 V-Plow is built for downsized trucks such as the Chevy Colorado, Ford Ranger, Ford Bronco, Jeep Wrangler to name a few. This is a Light-Commercial plow designed for use by contractors, facility managers, municipalities and universities or school districts. Great applications include driveways, sidewalks, and tight spaces.

The Flared Wing design showcases a 22-inch center and a 27-inch outer height for greater snow-casting. Standard structural features include a direct linkage system delivering hydraulic-controlled lift and lower functionality, reactive Down-Pressure system providing over 250 lbs. of down force for a cleaner scrape, single jack stand for easy on/off with the Drive-In Mount and a Trip Edge blade design to dampen shock forces going into the frame of the truck.

The ESS Smart Sight™ system is the standard wiring/lighting platform that provides efficient power and bright lights along with the ability to add optional lighting including the Smart Flash Kit™ The ESS system allows a user with many vehicles to easily move this plow from truck to truck.

The Flared Wing 22V Series 2 Vee Plow weighs just 380 pounds so it allows any person with a downsized truck to put those trucks back to work.

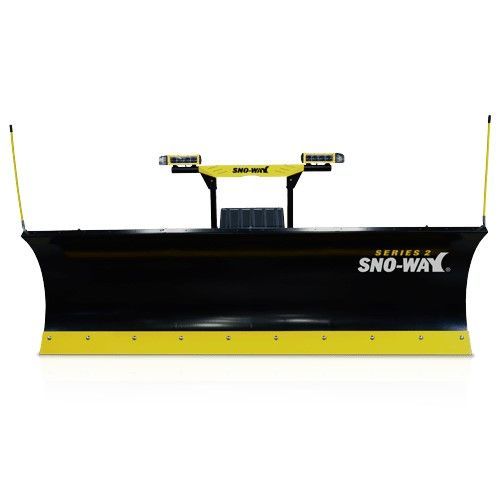

The Professional's Straight Blade Plow

This 32 inch high snowplow blade is constructed with a 12 gauge steel welded moldboard designed with slot and lock engineered components. The tallest straight snow plow series in the Sno-Way line is available in 8’6”, 9’0” and 10’0” lengths. The 8’6” and 9’0” plows are designed with custom engineered mounting brackets designed to accept the patented E-Z Switch™ accessory wings.

While plowers are a rough and tough crew, they do like their plows to look good and Sno-Way delivers with the first-ever Triple-Coat Protection; zinc phosphate wash, automotive E-Coat primer and military grade powder coat combination. The Triple-Coat Protection System delivers a surface that is resistant to penetration by salt, sand, stones or any other aggregate material.

This 32 Contractor Series Straight snow plow is made for the professional who needs to get the job done. This snowplow comes standard with our patented Down Pressure® hydraulic system allowing the savvy contractor to add 250 lbs of down force at the touch of a button. The Down Pressure hydraulics actually allows the contractor to clean better and spread less salt. Spreading less salt means spending less on materials and spending less on materials means more money in your pocket. More money in your pocket is what the savvy contractor is after.

Add the optional E-Z Switch™ wings and you will double the capacity of the 32 Contractor making you the smartest player in the business. Sno-Way engineers solutions that make sense and the E-Z Switch™ wings make sense for those wanting to double their snow-moving capabilities without destroying the integrity of the base blade system.

The E-Z Switch™ 3” box wings more than double plowing capacity and the 9” wings provide the large scale contractor up to 3 times the snow removal equipment in just seconds. Simply stated, we designed the 32 Contractor snow plow to work with the wings instead of the wings being an afterthought. So, add the wings, move more snow and crush the competition.

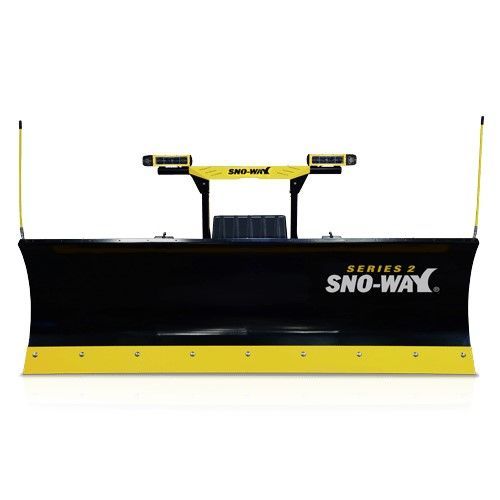

Commercial Plow Performance

The 29HD Series 2 Plow is built using high-strength steel moldboard and A-frame construction; fast, responsive hydraulics; and optimized blade geometry for exceptional snow-rolling performance.

The 29 inch tall blades are available in 7’6? and 8’0? lengths with custom designed mounting brackets that accept two accessory wing options without destroying blade integrity. The 29HD Series 2 fits a wide range of plow trucks due to extensive use of high strength steels and efficient manufacturing design.

With the optional Down Pressure® Hydraulic System, this plow will clean better and cut 30% of your plowing time. The Down Pressure Hydraulics add over 250 pounds of down-force on the cutting edge which is a first in the industry and scrapes clean forward and maximizes back dragging.

Common Truck Applications: 3/4 Ton: F-250, Ram 2500, 2500 Sierra, 2500 Silverado. 1 Ton: F-350, Ram 3500, 3500 Sierra, 3500 Silverado

Superior Plow Performance for half-ton trucks

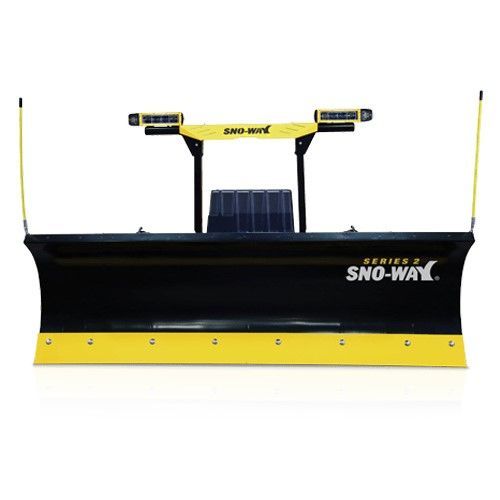

Tough & Light: The 26 Series 2 has all of the same standard features as Sno-Way’s commercial plow line without the extra weight: High-strength steel FlexForce™ frame construction, heavy-duty A-frame and an ultra-responsive hydraulic package.

The 26 inch tall blades are available in 6’8? and 7’6? lengths with custom drilled top rail designed to accept the patented EZ-Fit Snow Deflector. The high strength steel blade on the Sno-Way 26 series is kept looking good and slick with the Triple-Coat Protection; zinc phosphate wash, automotive E-Coat primer and military grade powder coat combination. The Triple-Coat Protection System delivers a surface that is resistant to penetration by salt, sand, stones or any other aggregate material.

With the optional Down Pressure® Hydraulic System, this plow will clean better and cut 30% of your plowing time. The Down Pressure Hydraulics add over 250 pounds of down-force on the cutting edge which is a first in the industry and scrapes clean forward and maximizes back dragging.

Common Truck Applications: 1/2 Ton: 1500 Avalanche, F-150, Ram 1500, 1500 Sierra, 1500 Silverado, 1500 Suburban, 1500 Yukon

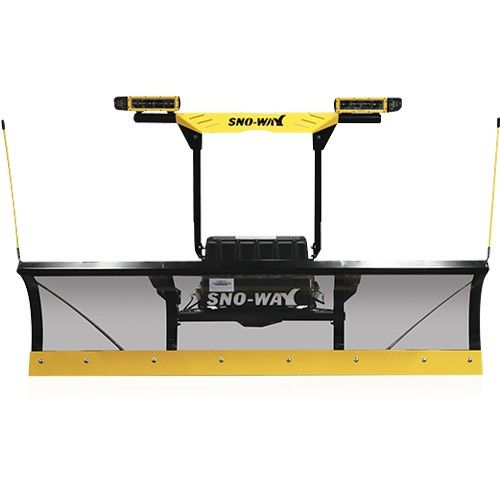

Big Blade Results for Downsized Trucks

Two blade sizes – 6'-8? and 7'-6? – each 22? high, help you meet your non-commercial plowing application head-on. High-strength steel FlexForce™ frame construction, patented ESS™ lighting technology, direct linkage lifting system and an ultra-responsive hydraulic package are all combined in a small performance package in the 22 Series 2.

Sno-Way designed the 22 Series 2 Snow Plow specifically for trucks and SUV’s smaller than ½ ton trucks. Producing a durable, fully functional plow for smaller trucks is a specialty of Sno-Way. In 1978, Sno-Way built the first plow to fit a Subaru Brat and has been the only plow company to dominate this sector of the market since.

Engineers have perfected the appropriate use of various types of high strength steels in the right combination of components to keep strength up and weight down. The 22 series 2 plow blade can be seen from a distance as it is a steel frame with polycarbonate blade face. The original intent of this design was as a see-through and impenetrable surface but today it is used to keep weight down and structural integrity high.

All Sno-Way plows are offered standard with high-intensity plow lights that are switched automatically from truck to plow with the patented ESS system. The ESS (Energy Smart System) eliminates any of the typically troublesome relays by creating a closed-loop truck to plow light connection.

The Sno-Way hydraulic system is specifically engineered for the 22 Series 2 to allow for fast action and durable hydraulic performance. Custom designed cylinders, fittings, hoses and internal components are married with the optimal geometry design to create the ultimate small plow system.

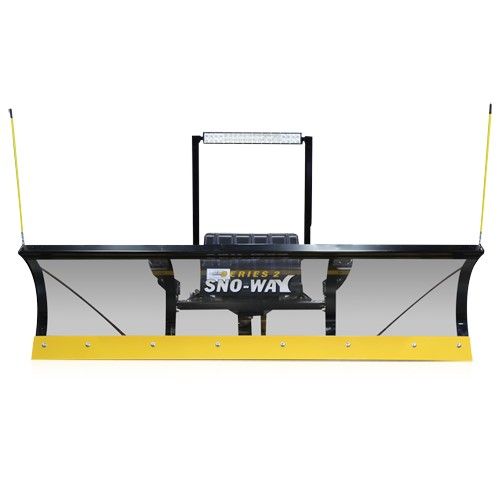

Fully Hydraulic DriveWay Plow

Two blade sizes – 6'-8" and 7'-6" – each 22" high, help you meet your driveway plowing head-on. High-strength steel FlexForce™ frame construction, direct linkage lifting system and an ultra-responsive hydraulic package are all combined in a small performance package in the 22 Series.

Sno-Way designed the 22 DriveWay Series 2 Snow Plow specifically for trucks and SUV’s smaller than ½ ton trucks. Producing a durable, fully functional plow for smaller trucks is a specialty of Sno-Way. In 1978, Sno-Way built the first plow to fit a Subaru Brat and has been the only plow company to dominate this sector of the market since.

Engineers have perfected the appropriate use of various types of high strength steels in the right combination of components to keep strength up and weight down. The 22 series plow blade can be seen from a distance as it is a steel frame with polycarbonate blade face. The original intent of this design was as a see-through and impenetrable surface but today it is used to keep weight down and structural integrity high.

The Sno-Way hydraulic system is specifically engineered for the 22 DriveWay Series 2 Plow to allow for fast action and durable hydraulic performance. Custom designed cylinders, fittings, hoses and internal components are married with the optimal geometry design to create the ultimate small plow system.
